Buttweld Fittings

Buttweld Fittings

Stainless Steel Butt Weld Fittings,Alloy Steel Butt Weld Fittings / Long 90 deg Nickel Alloy Butt Weld Fitting

Standard: ASTM / ASME A/SA 403 GR WP "S" / "W" / " WX"
Grade: 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
ASTM / ASME A/SA 234
Grade: WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.

Alloy Steel Butt Weld Fittings / Long 90 deg Nickel Alloy Click Here

Alloy Steel Butt Weld Fittings / Long 90 deg Nickel Alloy Butt Weld Fitting

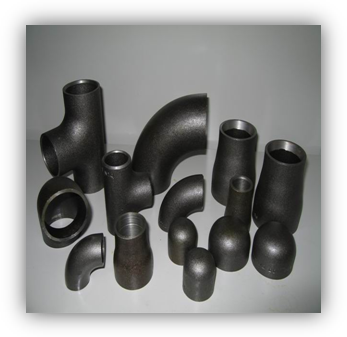

BUTT WELD FITTINGS.

We are engaged in manufacturing of a wide range of Butt Weld Fitting that is available in varied types such as L/R & S/R elbow, tee, concentric and eccentric reducers, reducing elbow & tee, cross and caps. Sourced from reliable vendors, these fittings are highly acknowledged for their high tensile strength, durability and accurate alloy composition. These find application in several industries such oil & gas, automobile, acid & chemical, pharmaceutical and cement industries. We are known for our butt welding fitting pieces.

Sizes : 1/2" NB - 48" NB
Wall Thickness Available : Schedule 10s - Schedule XXS
Dimension Standard: ANSI B16.9, MSS SP 43

Seamless, ERW, Fabricated

FORM:

  • Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg.
  • Return Bend, U Bend, Long Radius Bend.
  • Equal, Unequal Tee & Barred Tee.
  • Eccentric Reducer & Concentric Reducer.
  • Caps & Crosses.
  • Long & Short Stub End.
  • Swage Nipple & Barrel Nipple
  • Laterals

VALUE ADDED SERVICES

  • Hot Dipped Galvanizing
  • Epoxy & FBE Coating
  • Electro Polish

TEST CERTIFICATE
Manufacturer Test Certificate as per EN 10204 / 3.1B

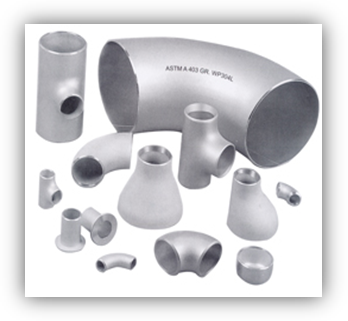

Stainless Steel Butt Weld Fittings We offer wide gamut of stainless steel butt weld fittings that are widely used in diverse industries. Our gamut of products conform various standards such as the varied grades of stainless steel butt weld fittings that we supply are.
Standard: ASTM / ASME A/SA 403 GR WP "S" / "W" / " WX"
Grade: 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Carbon Steel & Alloy Steel Butt Weld Fittings
We offer a wide array of carbon steel & alloy steel butt weld fittings that are widely appreciated for their exclusive features. Our entire gamut conform various international standards.
Carbon Steel Butt Weld Fittings Standard:
ASTM / ASME A/SA 234 / 860
Grade: WPB, WPC, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel Butt Weld Fittings Standard:
ASTM / ASME A/SA 234
Grade: WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.

Nickel Alloy Butt Weld Fittings
Our traded products include nickel alloy butt weld fittings that are extensively used in diverse industries. These butt weld fittings conform to rds. Various grades of nickel alloy butt weld fittings are.
Standard: ASTM / ASME SB 336
Grade: UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20) CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276).



Butt Weld Elbow (90°)
Pipe elbow fittings is a very important pipe fitting. When we talk about a pipe elbow, it means a length of pipe with a sharp bend in it. Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and is available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.
°Chirag Steel manufactures pipe fitting devices which are bent in such a way to produce some degree (90, 45, 180 degree) changes in the direction of flow of the content in the pipe. Elbows are manufactured to meet different specifications, in terms of size and diameter. Prosaic Steel & Alloys manufactures & supplies high quality elbows that can be used for various applications. Our elbows are tested and verified for durability, accuracy and precision.
Chirag Steel manufactures forged, seamless & welded elbows (pipe fitting) of types 90° Elbows, 90° Elbow, 45° Elbows, 180° Elbow of socket weld, threaded type to ANSI B 16.9 from classes 2000 to 9000 and Schedules from 10 to 160 .
Chirag Steel manufactures elbow (pipefitting) accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160.
Chirag Steel designs & manufactures elbows (pipe fittings) of special type made according to drawing on request.
Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.

Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Size:
Outer Diameter (D): D<=1220mm
Wall Thickness (T): T<=120mm
L/R Elbow( 90deg & 45deg & 180deg.),
S/R Elbow (90deg & 180deg.)
Pressure: SCH5 to SCH160
Manufacturing standard: ANSI, JIS, DIN, EN, API 5L, etc.
Bending Angle: Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients.
End Bevel: According to the bevel of welding pipe fittings construction
Surface treatment: Shot blasted, rust-proof black oil

Butt Weld Elbow (45°)
Owing to offer quality products, we are involved in making of elbow 45 degree for our customers. These pipe fittings offer amazing functionality. Stainless steel, alloy steel, nickel alloys are used for crafting these pipe fittings. Our Elbow (45°) pipe fitting is offered at market leading rates.


Size: 1/2"NB TO 48"NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type: Seamless / ERW / Welded / Fabricated

Material Type:
Stainless Steel, Alloy Steel and Carbon Steel
Nickel Alloys
Duplex

Grades:
Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

Stainless Steel
ASTM / ASME SA 403 GR WP "S"/ "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.

Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91

Butt Weld Elbow (180°)
We have earned prominent name in designing of Elbow (180°) fitting. These pipe fittings serve wide range of functionalities in outstanding way. The Elbow 180 degree is crafted with great precision by our experienced staff. We provide best rates for elbow 180 degree.


Size : 1/2"NB TO 48"NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated

Material Type:
Stainless Steel, Alloy Steel and Carbon Steel
Nickel Alloys
Duplex

Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.

Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.

Butt Weld Equal Tee and Cross
Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tees are widely used as pipe fittings. They are made of various materials and available in various sizes and finishes. Pipe tees are extensively used in pipeline networks to transport two-phase fluid mixtures.

Chirag Steel manufactures a wide range of tees (pipefitting) made of exotic metals, nickel, nickel alloys, Stainless Steel etc., of various grades. Tees (branch outlets) are manufactured as Equal tees and Reducing tees. Equal tees are exactly that, all three ends are of the same size. Reducing tees come with a combination of different outlet sizes.
Chirag Steel manufactures & supplies high quality tees (pipe fitting) that can be used for various applications. Our tees are tested and verified for durability, accuracy and precision.
Chirag Steel manufactures forged [ socket weld tee, forged threaded tees ], seamless & weldedtees of types equal tee, reducing tees to ANSI B 16.5 from classes 2000 to 9000 and Schedules from 10 to 160 .
Chirag Steel manufactures tees accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160.
Chirag Steel designs & manufactures tees (pipe fittings) of special type made according to drawing on request.

Size: 1/2"NB TO 48"NB IN

Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type: Seamless / ERW / Welded / Fabricated

Form :Equal Tee, Reducing Tee, Barred Tee , Lateral Tee


Material Type:
Stainless Steel
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 WPHY 70.

Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6

Alloy Steel
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel
ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy
ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

VALUE ADDED SERVICES

  • Hot Dip Galvanizing
  • Epoxy Coating
  • Electro polish


TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Butt Weld Pipe Reducers

Pipe reducer is tube fittings that are widely used in a number of industries in order to providing greatest connection flexibility in connecting fractional tubes in various installations. Pipe reducer is a kind of pipe fitting that joins two pipes of different diameter. The pipe reducers are available in a range of materials depending on the end use of the products and these fittings are manufactured in inch and metric size.

Pipe reducers are special type of tube fittings that are commonly used in the demanding environments of chemical and power plants. They provide a highly reliable, sturdy and tight integral line system and these types of pipe fittings remain unaffected by shock, vibration or thermal distortion. These pipe fittings are very easy to install and they resist leakage due to thermal or pressure cycling. These reducers are sometimes chrome or nickel coated to prevent corrosion and increase the life of the product.

Chirag Steel manufactures reducers (pipe fitting) to reduce the diameter of the suction piping to fit the pump intake, thus used to join two pipes of different sizes. Reducers are available in both eccentric and concentric designs. Concentric or eccentric reducers are used to properly reduce into and out of circulating pumps.

The various advantages include keeping big pipes and small pipes together as well as reducing noise and vibration at the same time. Our reducers are tested and verified for durability, accuracy and precision.

Chirag Steel manufactures forged, seamless & welded reducers (pipe fitting) of types concentric reducer, eccentric reducers to ANSI B 16.5 from classes 2000 to 9000 and Schedules from 10 to 160.

Chirag Steel manufacture reducers accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160 .

Chirag Steel designs & manufactures reducers (pipefitting) of special type made according to drawing on request.

Size: 1/8"NB TO 48"NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type: Seamless / ERW / Welded / Fabricated
Form : Eccentric Reducer, Concentric Reducer

Material Type:
Stainless Steel
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel
ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6

Alloy Steel
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel
ASTM A 815 UNS NO S 31803, S 32205

Nickel Alloy
ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400(MONEL 400 ), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

VALUE ADDED SERVICES

  • Hot Dip Galvanizing
  • Epoxy Coating
  • Electro polish


TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Butt Weld Caps and Stub Ends
Pipe caps act as protective device and are designed to protect pipe ends of various shapes. The main purpose of using pipe caps is to waterproof the connections. They are also used to close the ends of hydraulic or pneumatic pipes and tubes. They are used in the plumbing apparatus of domestic, commercial and industrial water supply lines, machinery and processing equipment etc. They are also fitted on water pump lines with the sole purpose of removing air blocks. Pipe caps are highly demanded as an important category of pipe fittings.

Chirag Steel manufactures a wide range of caps (pipefitting) made of materials - exotic metals, nickel, cupro-nickel, Stainless Steel etc., of various grades. Prosaic Steel & Alloys manufactures & supplies high quality cap (pipe fitting) that can be used for various applications. Our caps(pipefittings) are tested and verified for durability, accuracy and precision.
Prosaic Steel & Alloys manufactures forged & seamless caps(pipefitting) of types including socket weld cap, threaded cap to ANSI B 16.5 from classes 2000 to 9000 and Schedules from 10 to 160 .
Chirag Steel manufacture forged socketweld & threaded caps, seamless cap accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160 .
Chirag Steel also design & manufacture caps (pipe fittings) of special types made according to drawing on request.
Stub Ends are fittings used in place of welded flanges where rotating back up flanges are desired. They are also called Lap Joints and Vanstone Flared Laps. A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint.
Our high quality stub ends (Butt weld fittings) are tested and verified for durability, accuracy and precision. The stub ends are manufactured in all standard dimensions. The stub ends are provided with a standard weld bevel and can be available in squared, flanged, victaulic and threaded ends. We offer stub ends at highly competitive prices.

Chirag Steel manufactures a wide range of stub ends (pipefitting) made of materials - exotic metals, nickel, cupro-nickel, Stainless Steel etc., of various grades. Prosaic Steel & Alloys manufactures & supplies high quality stub ends (pipe fittings) that can be used for various applications. Our stub ends are tested and verified for durability, accuracy and precision.

Chirag Steel manufactures seamless stub ends of long & short radius to MSS and ANSI B 16.9 standard from Schedules 10 to 160.
Chirag Steel designs & manufactures subtends (pipe fitting) of special type made according to drawing on request.




Size: 1/2"NB TO 48"NB IN
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type: End Cap ,Stub End

Material Type:
Stainless Steel
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel
ASTM A 234 WPB ,WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 &WPHY 70.

Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6

Alloy Steel
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel
ASTM A 815 UNS NO S 31803, S 32205.

Nickel Alloy
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

VALUE ADDED SERVICES

  • Hot Dip Galvanizing
  • Epoxy Coating
  • Electro polish


TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Butt Weld Steel Nipples
A pipe nipple is a length of straight pipe with male threads on both ends. It is one of the most popular category of pipe fittings. It is a connector or a coupling threaded on both ends. Pipe nipples are used to allow plumbing to be connected to a water heater or other plumbing. They are used to fit straight end hose or pipe. A combination of pipe nipples are recommended for low-pressure discharge and suction service for various compatible liquids and not for compressible products like air, nitrogen or steam.

The working pressure of pipe nipples will vary with the size and construction of the pipe, the type and number of clamps used, clamp placement, proper installation of clamps, temperature and product being conveyed. Pipe nipples are available in the widest variety of wall thicknesses and materials in the industry.
Steel Tubes India manufactures a wide range of nipples (pipe fitting) made of materials such as exotic metal, nickel, nickel alloys, cupronickel, Stainless Steel etc., of various grades. Steel Tubes India manufactures & supplies high quality nipples (pipefitting) that can be used for various applications. Our nipples are tested and verified for durability, accuracy and precision.
Steel Tubes India manufactures forged socket welding nipple and forged threaded nipples to ANSI, BS, SAE & (swaged nipple) MSS standards from Classes 2000 lbs to 9000 lbs
Production Range:-

Size: 1/8"NB TO 4"NB IN

Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type: Seamless / ERW / Welded

Form: Pipe Nipple, Hex Nipple, Swage Nipple, Barrel Nipple
Grades:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760.

Carbon Steel
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91


A234-WP5 , 304L Butt Weld Fittings 4 Inch DIN / ASME Stub Ends Click Here

A234-WP5 , 304L Butt Weld Fittings 4 Inch DIN / ASME Stub Ends

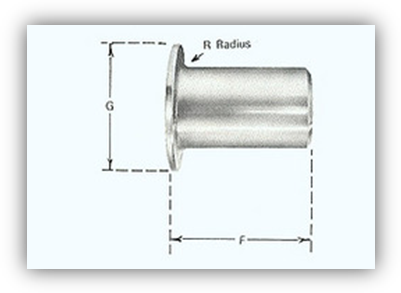

Stub ends ANSI B 16.9

Stub Ends are fittings used in place of welded flanges where rotating back up flanges are desired. They are also called Lap Joints and Vanstone Flared Laps. A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint. Our high quality stub ends (Butt weld fittings) are tested and verified for durability, accuracy and precision. The stub ends are manufactured in all standard dimensions. The stub ends are provided with a standard weld bevel and can be available in squared, flanged, victaulic and threaded ends. We offer stub ends at highly competitive prices.



Chirag Steel manufactures a wide range of stub ends (pipefitting) made of materials - exotic metals, nickel, cupro-nickel, Stainless Steel etc., of various grades.Chirag Steel manufactures & supplies high quality stub ends (pipe fittings) that can be used for various applications. Our stub ends are tested and verified for durability, accuracy and precision.

Chirag Steel manufactures seamless stub ends of long & short radius to MSS and ANSI B 16.9 standard from Schedules 10 to 160.

Chirag Steel designs & manufactures subtends (pipe fitting) of special type made according to drawing on request.

Material: A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6, 316L, 304L, 321, 321H.
Size:1/2" - 24"
Types:Type A, Type B, Type C, Type D
Manufacturing standard: ASME/ANSI B16.9, JIS, DIN, EN, API 5L, etc.
Surface treatment: Shot blasted, rust-proof black oil

INCHES
METRIC
N.B.
O.D. At Bevel
F
Rad. Of Fillet R
Dia of Lap G
O.D. Of Barrel

N.B.
O.D. At Bevel
F
Rad. Of Fillet R
Dia of Lap G
O.D. Of Barrel






Max.
Min.





Max.
Min.
1
-
2
0.84
3
1
-
8
1 3/8
0.9
0.81
15
21.34
76.2
3.18
34.93
22.76
20.55
3
-
4
1.05
3
1
-
8
1 11/16
1.11
1.02
20
26.67
76.2
3.18
42.86
28.09
25.88
1
1.32
4
1
-
8
2
1.38
1.28
25
33.4
101.6
3.18
50.8
34.95
32.61
1 1/4
1.66
4
3
-
16
2 1/2
1.72
1.63
32
42.16
101.6
4.76
63.5
43.59
41.38
1 1/2
1.9
4
1
-
4
2 7/8
1.97
1.87
40
48.26
101.6
6.35
73.03
49.94
47.47
2
2.38
6
5

16
3 5/8
2.46
2.34
50
60.33
152.4
7.94
92.08
62.38
59.54
2 1/2
2.88
6


16
4 1/8
2.97
2.84
65
73.03
152.4
7.94
104.78
75.34
72.24
3
3.5
6


8
5
3.6
3.47
80
88.9
152.4
9.53
127
91.34
88.11
3 1/2
4
6


8
5 1/2
4.1
3.97
90
101.6
152.4
9.53
139.7
104.04
100.81
4
4.5
6


16
6 3/16
4.59
4.47
100
114.3
152.4
11.11
157.16
116.66
113.51
5
5.56
8


16
7 5/16
5.68
5.53
125
141.3
203.2
11.11
185.74
144.35
140.51
6
6.63
8


2
8 1/2
6.74
6.59
150
168.28
203.2
12.7
215.9
171.27
167.49
8
8.63
8


2
10 5/8
8.74
8.59
200
219.08
203.2
12.7
269.88
222.07
218.29
10
10.75
10

- 2
12 3/4
10.91
10.72
250
273.05
254
12.7
323.85
277.19
272.26
12
12.75
10


2
15
12.91
12.72
300
323.85
254
12.7
381
327.99
323.06
14
14
12


2
16 1/4
14.17
13.97
350
355.6
304.8
12.7
412.75
359.92
354.81
16
16
12


2
18 1/2
16.18
15.97
400
406.4
304.8
12.7
469.9
410.97
405.61
18
18
12


2
21
18.19
17.97
450
457.2
304.8
12.7
533.4
462.03
456.41
20
20
12


2
23
20.24
19.97
500
508
304.8
12.7
584.2
514.1
507.21
22
22
12


2
25 1/4
22.24
21.97
550
558.8
304.8
12.7
641.35
564.9
558.01
24
24
12


2
27 1/4
24.24
23.97
600
609.6
304.8
12.7
692.15
615.7
608.81
